NVIDIA RTX PRO 4000 Blackwell

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > NVIDIA RTX PRO 4000 > NVIDIA RTX PRO 4000 Blackwell

NVIDIA RTX PRO 4000 Blackwell
900-5G147-2570-000

Information
PlatformWorkstation
ArchitectureBlackwell 2nd-gen
GenerationBlackwell PRO W
Previous GenWorkstation Ada
InterfacePCIe 5.0 x16
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378.0 mm²
Density120.6 /mm²
GPU Core Config
Cores8960
TMUs280
ROPs96
Tensor Cores280
RT Cores70
Memory
TechnologyGDDR7
Size24 GB
Bus192 bit
Bandwidth672.0 GB/s
Speed28.0 Gbps

Information
Platform	Workstation
Architecture	Blackwell 2nd-gen
Generation	Blackwell PRO W
Previous Gen	Workstation Ada
Interface	PCIe 5.0 x16

Core
Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378.0 mm²
Density	120.6 /mm²

GPU Core Config
Cores	8960
TMUs	280
ROPs	96
Tensor Cores	280
RT Cores	70

Memory
Technology	GDDR7
Size	24 GB
Bus	192 bit
Bandwidth	672.0 GB/s
Speed	28.0 Gbps

Clocks
Base clock1590 MHz
Boost clock2620 MHz
Memory clock1750 MHz
Power
16-pin1
TDP140 w
Recommended PSU300 w
Display
DisplayPort4 2.1b
Dimensions
Slots1
Length242 mm
Height112 mm
Width20 mm

Clocks
Base clock	1590 MHz
Boost clock	2620 MHz
Memory clock	1750 MHz

Power
16-pin	1
TDP	140 w
Recommended PSU	300 w

Display
DisplayPort	4 2.1b

Dimensions
Slots	1
Length	242 mm
Height	112 mm
Width	20 mm

Models

GPU▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲

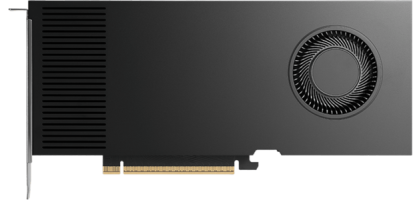

PNY RTX PRO 4000 Blackwell VCNRTXPRO4000-PB	2620 MHz	1	242 mm	112 mm	20 mm
PNY RTX PRO 4000 Blackwell VCNRTXPRO4000-SB	2620 MHz
NVIDIA RTX PRO 4000 Blackwell Bulk 900-5G147-2270-000	2620 MHz
NVIDIA RTX PRO 4000 Blackwell 900-5G147-2570-000	2620 MHz
