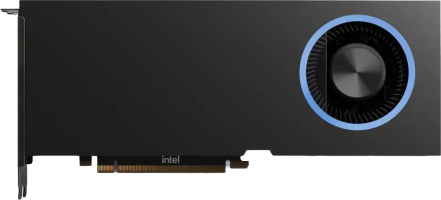

Intel Arc Pro B70

Arc Pro B70 is a workstation-grade GPU from intel\'s Arc B series, built on the Battlemage architecture using the BMG-G31 chip. Equipped with 32 GB of GDDR6 memory on a 256-bit bus, it delivers 608.3 GB/s of bandwidth at 19.0 Gbps.

Information
PlatformWorkstation
ArchitectureBattlemage
GenerationArc B
Previous GenArc A
InterfacePCIe 5.0 x16
Core
NameBMG-G31
FoundryTSMC
Process Node5 nm
GPU Core Config
RT Cores32
Memory
TechnologyGDDR6
Size32 GB
Bus256 bit
Bandwidth608.3 GB/s
Speed19.0 Gbps

Information
Platform	Workstation
Architecture	Battlemage
Generation	Arc B
Previous Gen	Arc A
Interface	PCIe 5.0 x16

Core
Name	BMG-G31
Foundry	TSMC
Process Node	5 nm

GPU Core Config
RT Cores	32

Memory
Technology	GDDR6
Size	32 GB
Bus	256 bit
Bandwidth	608.3 GB/s
Speed	19.0 Gbps

Clocks
Base clock2280 MHz
Boost clock2800 MHz
Memory clock2376 MHz
Power
8-pin1
TDP230 w
Recommended PSU550 w
Display
DisplayPort4 2.1
Dimensions
Slots2

Clocks
Base clock	2280 MHz
Boost clock	2800 MHz
Memory clock	2376 MHz

Power
8-pin	1
TDP	230 w
Recommended PSU	550 w

Display
DisplayPort	4 2.1

Dimensions
Slots	2

Models

GPU▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Sparkle Intel Arc Pro B70 Blower SBP70W-32G		2800 MHz	2.1	289 mm	120 mm	42 mm
Intel Arc Pro B70 Reference Design		2800 MHz
