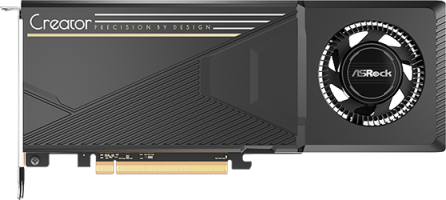

Intel Arc Pro B60

Arc Pro B60 is a workstation-grade GPU from intel\'s Arc B series, built on the Battlemage architecture using the BMG-G21 chip. Equipped with 24 GB of GDDR6 memory on a 192-bit bus, it delivers 456.0 GB/s of bandwidth at 19.0 Gbps.

Information
PlatformWorkstation
ArchitectureBattlemage
GenerationArc B
Previous GenArc A
InterfacePCIe 5.0 x8
Core
NameBMG-G21
FoundryTSMC
Process Node5 nm
Transistors19600 million
Die Size272.0 mm²
Density72.1 /mm²
GPU Core Config
Cores2560
TMUs160
ROPs80
RT Cores20
Memory
TechnologyGDDR6
Size24 GB
Bus192 bit
Bandwidth456.0 GB/s
Speed19.0 Gbps

Information
Platform	Workstation
Architecture	Battlemage
Generation	Arc B
Previous Gen	Arc A
Interface	PCIe 5.0 x8

Core
Name	BMG-G21
Foundry	TSMC
Process Node	5 nm
Transistors	19600 million
Die Size	272.0 mm²
Density	72.1 /mm²

GPU Core Config
Cores	2560
TMUs	160
ROPs	80
RT Cores	20

Memory
Technology	GDDR6
Size	24 GB
Bus	192 bit
Bandwidth	456.0 GB/s
Speed	19.0 Gbps

Clocks
Base clock2000 MHz
Boost clock2400 MHz
Memory clock2375 MHz
Power
8-pin1
TDP200 w
Recommended PSU550 w
Display
Mini DisplayPort4
Dimensions
Slots2
Length167 mm
Height69 mm
Width40 mm

Clocks
Base clock	2000 MHz
Boost clock	2400 MHz
Memory clock	2375 MHz

Power
8-pin	1
TDP	200 w
Recommended PSU	550 w

Display
Mini DisplayPort	4

Dimensions
Slots	2
Length	167 mm
Height	69 mm
Width	40 mm

Models

GPU▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Sparkle Intel Arc Pro B60 Blower		2400 MHz	2.1	289 mm	120 mm	42 mm
Sparkle Intel Arc Pro B60 Passive		2400 MHz	2.1	289 mm	120 mm	42 mm
