ASRock Intel Arc A770 Challenger SE OC

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > Intel Arc A770 > ASRock Intel Arc A770 Challenger SE OC

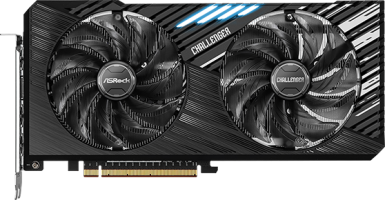

ASRock Intel Arc A770 Challenger SE OC - Front

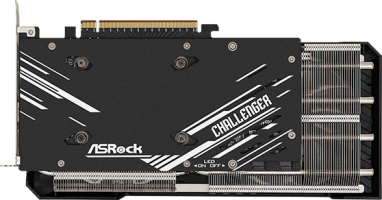

ASRock Intel Arc A770 Challenger SE OC - Rear

ASRock Intel Arc A770 Challenger SE OC - Side

ASRock Intel Arc A770 Challenger SE OC
A770 CL SE 16GO

Information
PlatformConsumer
ArchitectureAlchemist
GenerationArc A
Next generationArc B
InterfacePCIe 4.0 x16
Core
NameDG2-512
FoundryTSMC
Process Node6 nm
Transistors21700 million
Die Size406.0 mm²
Density53.4 /mm²
GPU Core Config
Cores4096
TMUs256
ROPs128
Tensor Cores512
RT Cores32
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Bandwidth1,024.0 GB/s
Speed32.0 Gbps

Information
Platform	Consumer
Architecture	Alchemist
Generation	Arc A
Next generation	Arc B
Interface	PCIe 4.0 x16

Core
Name	DG2-512
Foundry	TSMC
Process Node	6 nm
Transistors	21700 million
Die Size	406.0 mm²
Density	53.4 /mm²

GPU Core Config
Cores	4096
TMUs	256
ROPs	128
Tensor Cores	512
RT Cores	32

Memory
Technology	GDDR6
Size	16 GB
Bus	256 bit
Bandwidth	1,024.0 GB/s
Speed	32.0 Gbps

Clocks
Base clock2150 MHz 2100 MHz
Boost clock2150 MHz 2400 MHz
Memory clock2000 MHz
Power
8-pin2
TDP225 w
Recommended PSU650 w 550 w
Display
DisplayPort3 2.0
HDMI1 2.1
Dimensions
Slots2.4
Length267 mm
Height130 mm
Width48 mm
Weight820 g

Clocks
Base clock	2150 MHz 2100 MHz
Boost clock	2150 MHz 2400 MHz
Memory clock	2000 MHz

Power
8-pin	2
TDP	225 w
Recommended PSU	650 w 550 w

Display
DisplayPort	3 2.0
HDMI	1 2.1

Dimensions
Slots	2.4
Length	267 mm
Height	130 mm
Width	48 mm
Weight	820 g

Models

GPU▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Intel Arc A770 Challenger SE OC A770 CL SE 16GO		MHz
