| Core | |
|---|---|
| Name | Navi 33 |
| Foundry | TSMC |
| Process Node | 6 nm |
| Transistors | 13300 million |
| Die Size | 204.0 mm² |
| Density | 65.2 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 2048 |
| TMUs | 128 |
| ROPs | 64 |
| RT Cores | 32 |
| Memory | |
|---|---|
| Technology | GDDR6 |
| Size | 8 GB |
| Bus | 128 bit |
| Infinity Cache | 32 MB |
| Bandwidth | 72.0 GB/s |
| Speed | 4.5 Gbps |
| Clocks | |
|---|---|
| Base clock | 1720 MHz |
| Game Clock | 2300 MHz |
| Boost clock | 2715 MHz 2655 MHz |
| Memory clock | 2250 MHz |
| Power | |
|---|---|
| 8-pin | 1 |
| TDP | 165 w |
| Recommended PSU | 550 w 450 w |
| Display | |
|---|---|

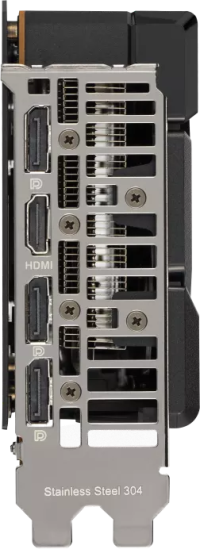

| DisplayPort | 3 1.4a |
| HDMI | 1 2.1 |
| HDCP | 2.3 |
| Dimensions | |
|---|---|
| Slots | 2.5 |
| Length | 229 mm |
| Height | 123 mm |
| Width | 49 mm |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2755 MHz +3.8% | 2.5 | 282 mm | 115 mm | 50 mm | ||
| 2755 MHz +3.8% | 2.2 | 240 mm | 107.1 mm | 44.1 mm | ||
| 2725 MHz +2.6% | 2.3 | 303 mm | 131 mm | 45 mm | ||
| 2655 MHz | 2.1 | 241 mm | 131 mm | 41 mm | ||
| 2655 MHz | 2.1 | 241 mm | 131 mm | 41 mm | ||
| 2715 MHz +2.3% | 2.5 | 229 mm | 123 mm | 49 mm | ||
| 2695 MHz +1.5% | 2 | 269.2 mm | 131.8 mm | 40.3 mm | ||
| 2695 MHz +1.5% | 2.3 | 223 mm | 132 mm | 45 mm | ||
| 2755 MHz +3.8% | 2.5 | 274 mm | 114 mm | 50 mm | ||
| 2726 MHz +2.7% | 2 | 267 mm | 118 mm | 40 mm |
