ASRock Radeon RX 7600 Challenger OC

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > AMD RX 7600 > ASRock Radeon RX 7600 Challenger OC

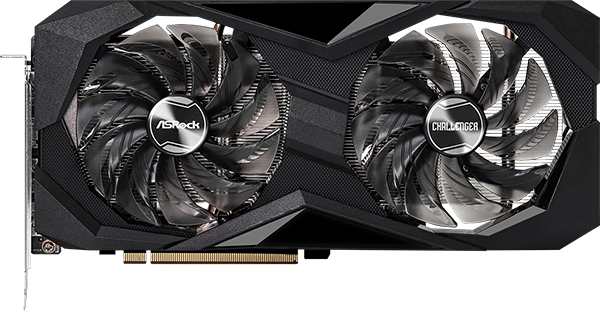

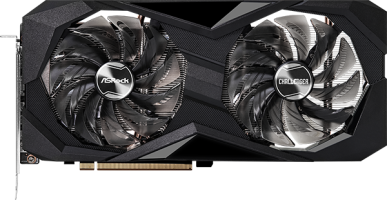

ASRock Radeon RX 7600 Challenger OC - Front

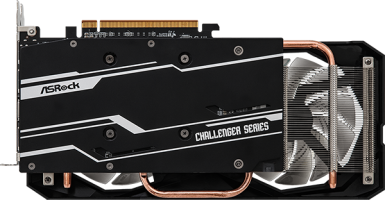

ASRock Radeon RX 7600 Challenger OC - Rear

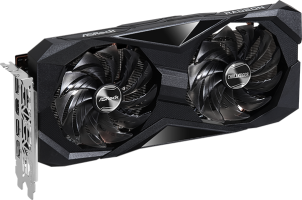

ASRock Radeon RX 7600 Challenger OC - Side

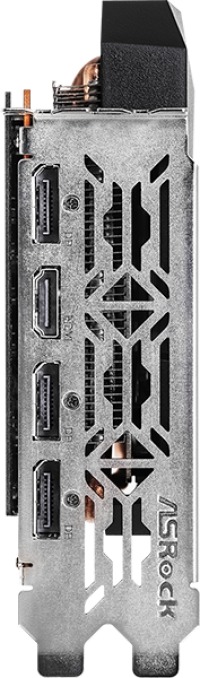

ASRock Radeon RX 7600 Challenger OC - Outputs

ASRock Radeon RX 7600 Challenger OC
RX7600 CL 8GO

Information
PlatformConsumer
ArchitectureRDNA3
GenerationRX 7000
Previous GenRX 6000
Next generationRX 9000
InterfacePCIe 4.0 x8
Core
NameNavi 33
FoundryTSMC
Process Node6 nm
Transistors13300 million
Die Size204.0 mm²
Density65.2 /mm²
GPU Core Config
Cores2048
TMUs128
ROPs64
RT Cores32
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Infinity Cache32 MB
Bandwidth72.0 GB/s
Speed4.5 Gbps

Information
Platform	Consumer
Architecture	RDNA3
Generation	RX 7000
Previous Gen	RX 6000
Next generation	RX 9000
Interface	PCIe 4.0 x8

Core
Name	Navi 33
Foundry	TSMC
Process Node	6 nm
Transistors	13300 million
Die Size	204.0 mm²
Density	65.2 /mm²

GPU Core Config
Cores	2048
TMUs	128
ROPs	64
RT Cores	32

Memory
Technology	GDDR6
Size	8 GB
Bus	128 bit
Infinity Cache	32 MB
Bandwidth	72.0 GB/s
Speed	4.5 Gbps

Clocks
Base clock1770 MHz 1720 MHz
Game Clock2280 MHz
Boost clock2695 MHz 2655 MHz
Memory clock2250 MHz
Power
8-pin1
TDP165 w
Recommended PSU550 w 450 w
Display
DisplayPort3 1.4a
HDMI1 2.1
Dimensions
Slots2
Length269.2 mm
Height131.8 mm
Width40.3 mm
Weight640 g

Clocks
Base clock	1770 MHz 1720 MHz
Game Clock	2280 MHz
Boost clock	2695 MHz 2655 MHz
Memory clock	2250 MHz

Power
8-pin	1
TDP	165 w
Recommended PSU	550 w 450 w

Display
DisplayPort	3 1.4a
HDMI	1 2.1

Dimensions
Slots	2
Length	269.2 mm
Height	131.8 mm
Width	40.3 mm
Weight	640 g

Models

GPU▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Gigabyte Radeon RX 7600 GAMING OC GV-R76GAMING OC-8GD	2755 MHz +3.8%	2.5	282 mm	115 mm	50 mm
Sapphire PULSE AMD Radeon RX 7600 11324-01-20G	2755 MHz +3.8%	2.2	240 mm	107.1 mm	44.1 mm
ASRock Radeon RX 7600 Steel Legend OC RX7600 SL 8GO	2725 MHz +2.6%	2.3	303 mm	131 mm	45 mm
XFX SPEEDSTER SWFT 210 AMD Radeon RX 7600 Core Edition RX-76PSWFTFA	2655 MHz	2.1	241 mm	131 mm	41 mm
XFX SPEEDSTER SWFT 210 AMD Radeon RX 7600 CoreEdition RX-76PSWFTFY	2655 MHz	2.1	241 mm	131 mm	41 mm
Asus Dual Radeon RX 7600 EVO OC Edition DUAL-RX7600-O8G-EVO	2715 MHz +2.3%	2.5	229 mm	123 mm	49 mm
ASRock Radeon RX 7600 Challenger OC RX7600 CL 8GO	2695 MHz +1.5%	2	269.2 mm	131.8 mm	40.3 mm
PowerColor Hellhound AMD Radeon RX 7600 RX7600 8G-L/OC	2695 MHz +1.5%	2.3	223 mm	132 mm	45 mm
XFX SPEEDSTER QICK 308 AMD Radeon RX 7600 Black Edition RX-76PQICKBY	2755 MHz +3.8%	2.5	274 mm	114 mm	50 mm
ASRock PREDATOR BIFROST Radeon RX 7600 OC APBF-ARX7600-8G-OC	2726 MHz +2.7%	2	267 mm	118 mm	40 mm
