PNY RTX A6000 - Prices, specifications and information

PNY RTX A6000

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > NVIDIA RTX A6000 > PNY RTX A6000

PNY RTX A6000
VCNRTXA6000-PB

Information
PlatformWorkstation
ArchitectureAmpere
GenerationWorkstation Ampere
Previous GenQuadro Turing
Next generationWorkstation Ada
InterfacePCIe 4.0 x16
Core
NameGA102
FoundrySamsung
Process Node8 nm
Transistors28300 million
Die Size628.0 mm²
Density45.1 /mm²
GPU Core Config
Cores10752
TMUs336
ROPs112
Tensor Cores336
RT Cores84
Memory
TechnologyGDDR6
Size48 GB
Bus384 bit
Bandwidth768.0 GB/s
Speed16.0 Gbps

Information
Platform	Workstation
Architecture	Ampere
Generation	Workstation Ampere
Previous Gen	Quadro Turing
Next generation	Workstation Ada
Interface	PCIe 4.0 x16

Core
Name	GA102
Foundry	Samsung
Process Node	8 nm
Transistors	28300 million
Die Size	628.0 mm²
Density	45.1 /mm²

GPU Core Config
Cores	10752
TMUs	336
ROPs	112
Tensor Cores	336
RT Cores	84

Memory
Technology	GDDR6
Size	48 GB
Bus	384 bit
Bandwidth	768.0 GB/s
Speed	16.0 Gbps

Clocks
Base clock1410 MHz
Boost clock1800 MHz
Memory clock2000 MHz
Power
8-pin1
TDP300 w
Recommended PSU700 w

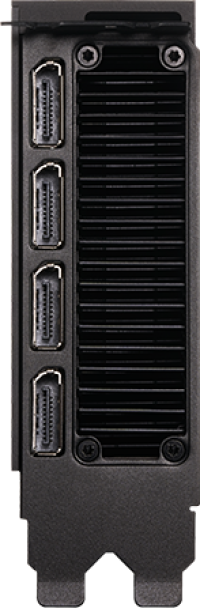

Display
DisplayPort4 1.4a
Dimensions
Slots2
Length266.7 mm
Height111.8 mm
Width40 mm

Clocks
Base clock	1410 MHz
Boost clock	1800 MHz
Memory clock	2000 MHz

Power
8-pin	1
TDP	300 w
Recommended PSU	700 w

Display
DisplayPort	4 1.4a

Dimensions
Slots	2
Length	266.7 mm
Height	111.8 mm
Width	40 mm

Models

GPU▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
PNY RTX A6000 VCNRTXA6000-PB		1800 MHz	2	266.7 mm	111.8 mm	40 mm
