| Platform | Consumer |
| Architecture | Ada Lovelace |
| Generation | GeForce RTX 40 |
| Previous Gen | GeForce RTX 30 |
| Next generation | GeForce RTX 50 |
| Interface | PCIe 4.0 x16 |
| Max temperature | 90 C |
| Name | AD106 |
| Foundry | TSMC |
| Process Node | 5 nm |
| Transistors | 22900 million |
| Die Size | 188.0 mm² |
| Density | 121.8 /mm² |
| Cores | 4352 |
| TMUs | 136 |
| ROPs | 48 |
| SMs | 34 |
| Tensor Cores | 136 |
| RT Cores | 136 |
| Technology | GDDR6 |
| Size | 16 GB |
| Bus | 128 bit |
| Bandwidth | 288.0 GB/s |
| Speed | 18.0 Gbps |
| Base clock | 2310 MHz |
| Boost clock | 2595 MHz 2535 MHz |
| Memory clock | 2250 MHz |
| 8-pin | 1 |
| TDP | 160 w |
| Recommended PSU | 500 w 550 w |

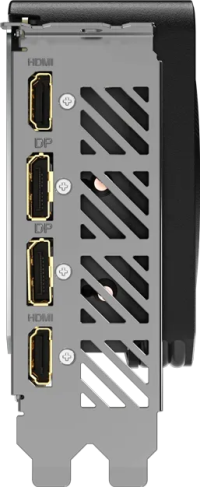

| DisplayPort | 2 1.4a |
| HDMI | 2 2.1a |
| Monitors | 4 |
| Slots | 2.7 |
| Length | 281 mm |
| Height | 117 mm |
| Width | 53 mm |
| GPUs▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2580 MHz +1.8% | 3.1 | 311.4 mm | 133.5 mm | 61.9 mm | ||
| 2745 MHz +8.3% | 3.1 | 311.4 mm | 133.5 mm | 61.9 mm | ||
| 2565 MHz +1.2% | 3.1 | 311.4 mm | 133.5 mm | 61.9 mm | ||
| 2535 MHz | 2 | 245.1 mm | 112.5 mm | 39.9 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2625 MHz +3.6% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2580 MHz +1.8% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2565 MHz +1.2% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2685 MHz +5.9% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2580 MHz +1.8% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2625 MHz +3.6% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2685 MHz +5.9% | 2.3 | 307 mm | 125 mm | 46 mm | ||
| 2595 MHz +2.4% | 2.7 | 281 mm | 117 mm | 53 mm |
