| Platform | Consumer |
| Architecture | Ampere |
| Generation | GeForce RTX 30 |
| Previous Gen | GeForce RTX 20 |
| Next generation | GeForce RTX 40 |
| Interface | PCIe 4.0 x16 |
| Max temperature | 93 C |
| Name | GA104 |
| Foundry | Samsung |
| Process Node | 8 nm |
| Transistors | 17400 million |
| Die Size | 392.0 mm² |
| Density | 44.4 /mm² |
| Cores | 6144 |
| TMUs | 192 |
| ROPs | 96 |
| SMs | 48 |
| Tensor Cores | 192 |
| RT Cores | 48 |
| Technology | GDDR6X |
| Size | 8 GB |
| Bus | 256 bit |
| Bandwidth | 608.3 GB/s |
| Speed | 19.0 Gbps |
| Base clock | 1575 MHz |
| Boost clock | 1830 MHz 1770 MHz |
| Memory clock | 1188 MHz |
| 8-pin | 2 |
| TDP | 310 w 290 w |
| Recommended PSU | 750 w |

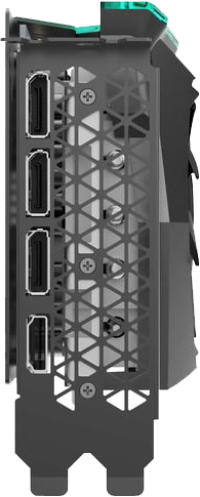

| DisplayPort | 3 1.4a |
| HDMI | 1 2.1 |
| Resolution | 7680x4320 |
| Monitors | 4 |
| Slots | 3 2 |
| Length | 316.8 mm |
| Height | 122.7 mm |
| Width | 58.6 mm 40 mm |
| GPUs▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1785 MHz +0.8% | 2.7 | |||||
| 1770 MHz | ||||||
| 1770 MHz | ||||||
| 1830 MHz +3.4% | 2.8 | 320 mm | 129 mm | 55 mm | ||
| 1770 MHz | 2 | 40 mm | ||||
| 1800 MHz +1.7% | 2.9 | 305 mm | 120 mm | 57 mm | ||
 $600.00 | 1815 MHz +2.5% | 2.6 | 299.9 mm | 126.9 mm | 51.7 mm | |
| 1815 MHz +2.5% | 2.2 | 285.4 mm | 111.2 mm | |||
| 1860 MHz +5.1% | 2.8 | 300 mm | 136.8 mm | |||
| 1875 MHz +5.9% | 3 | 335 mm | 140 mm | 61 mm | ||
| 1830 MHz +3.4% | 3 | 316.8 mm | 122.7 mm | 58.6 mm |
