| Information | |
|---|---|
| Platform | Consumer |
| Architecture | Ampere |
| Generation | GeForce RTX 30 |
| Previous Gen | GeForce RTX 20 |
| Next generation | GeForce RTX 40 |
| Interface | PCIe 4.0 x8 |
| Max temperature | 93 C |
| Core | |
|---|---|
| Name | GA106 |
| Foundry | Samsung |
| Process Node | 8 nm |
| Transistors | 12000 million |
| Die Size | 276.0 mm² |
| Density | 43.5 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 2560 |
| TMUs | 80 |
| ROPs | 32 |
| SMs | 20 |
| Tensor Cores | 80 |
| RT Cores | 20 |
| Memory | |
|---|---|
| Technology | GDDR6 |
| Size | 8 GB |
| Bus | 128 bit |
| Bandwidth | 224.0 GB/s |
| Speed | 14.0 Gbps |
| Clocks | |
|---|---|
| Base clock | 1545 MHz |
| Boost clock | 1792 MHz 1785 MHz |
| Memory clock | 1750 MHz |
| Power | |
|---|---|
| 8-pin | 1 |
| TDP | 130 w |
| Recommended PSU | 450 w 550 w |
| Display | |
|---|---|

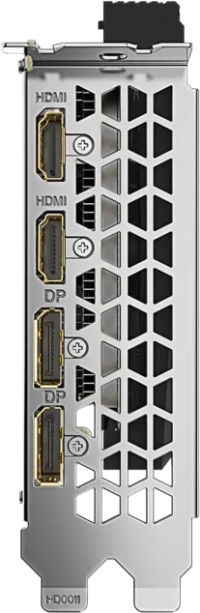

| DisplayPort | 2 1.4a |
| HDMI | 2 2.1 |
| HDCP | 2.3 |
| Resolution | 7680x4320 |
| Monitors | 4 |
| Dimensions | |
|---|---|
| Slots | 2 |
| Length | 198.1 mm |
| Height | 120.6 mm |
| Width | 39 mm |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1777 MHz -0.4% | 2 | |||||
| 1807 MHz +1.2% | 2.7 | 300 mm | 133.6 mm | 53.5 mm | ||
| 1890 MHz +5.9% | 2.7 | 300 mm | 133.6 mm | 53.5 mm | ||
| 1852 MHz +3.8% | 1.9 | 200 mm | 123 mm | 38 mm | ||
| 1777 MHz -0.4% | 2 | 222 mm | 120 mm | 40 mm | ||
| 1777 MHz -0.4% | 2.1 | 222.3 mm | 116.8 mm | 41.4 mm | ||
| 1807 MHz +1.2% | 2.3 | 205 mm | 112 mm | 45 mm | ||
| 1792 MHz +0.4% | 2 | 198.1 mm | 120.6 mm | 39 mm |
