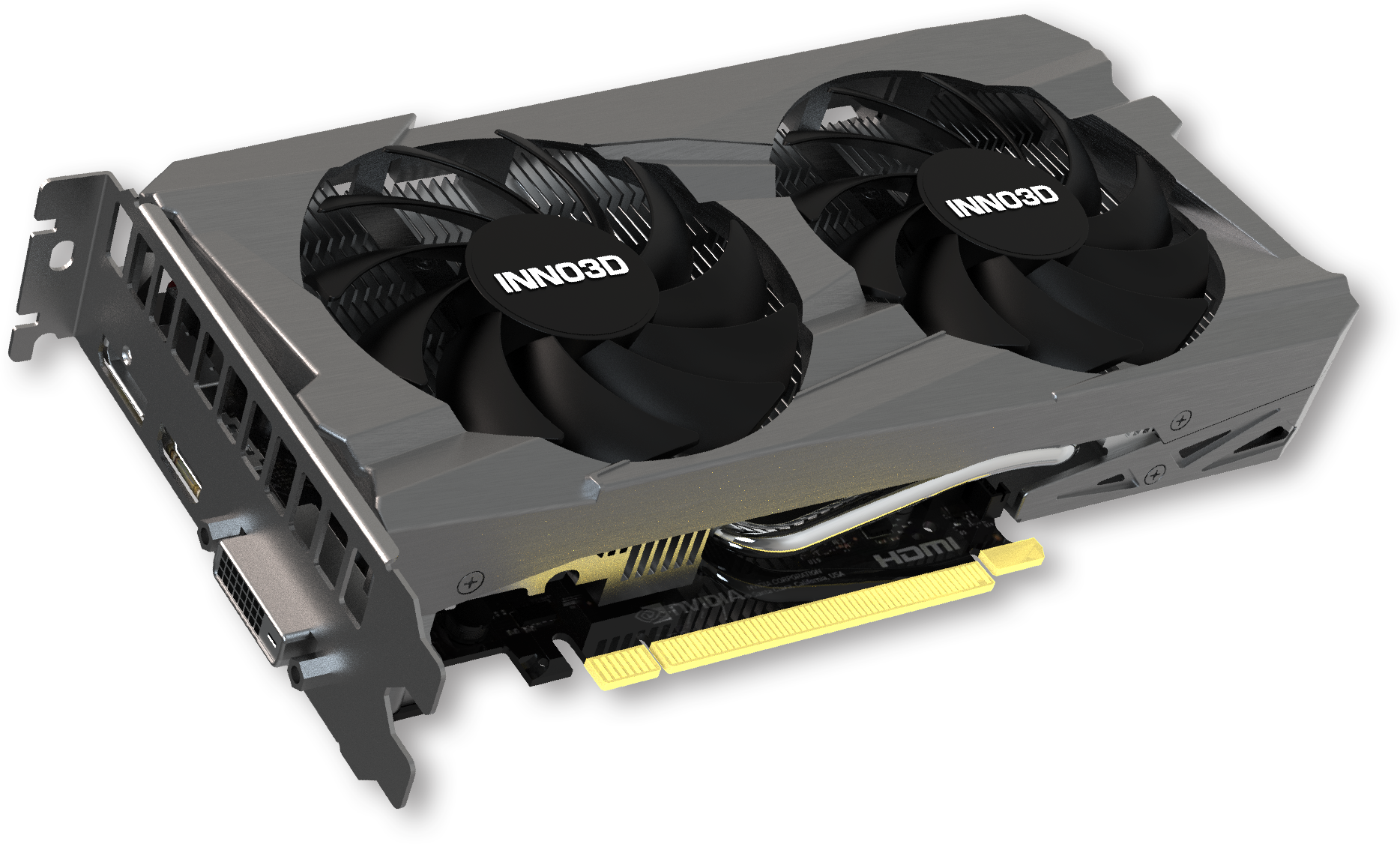

Inno3D GEFORCE RTX 3050 TWIN X2
N30502-08D6-1711VA41

Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next generationGeForce RTX 40
InterfacePCIe 4.0 x8
Max temperature93 C
Core
NameGA107
FoundrySamsung
Process Node8 nm
Transistors8700 million
Die Size200.0 mm²
Density43.5 /mm²
GPU Core Config
Cores2304
TMUs74
ROPs32
Memory
TechnologyGDDR6
Size6 GB
Bus96 bit
Bandwidth168.0 GB/s
Speed14.0 Gbps

Information
Platform	Consumer
Architecture	Ampere
Generation	GeForce RTX 30
Previous Gen	GeForce RTX 20
Next generation	GeForce RTX 40
Interface	PCIe 4.0 x8
Max temperature	93 C

Core
Name	GA107
Foundry	Samsung
Process Node	8 nm
Transistors	8700 million
Die Size	200.0 mm²
Density	43.5 /mm²

GPU Core Config
Cores	2304
TMUs	74
ROPs	32

Memory
Technology	GDDR6
Size	6 GB
Bus	96 bit
Bandwidth	168.0 GB/s
Speed	14.0 Gbps

Clocks
Base clock1552 MHz 1042 MHz
Boost clock1777 MHz 1470 MHz
Memory clock1750 MHz
Power
6-pin1
TDP70 w
Recommended PSU450 w 300 w
Display
DisplayPort1 1.4a
HDMI1 2.1
HDCP2.3
DVI-D DL1
Dimensions
Slots2
Length222 mm
Height120 mm

Clocks
Base clock	1552 MHz 1042 MHz
Boost clock	1777 MHz 1470 MHz
Memory clock	1750 MHz

Power
6-pin	1
TDP	70 w
Recommended PSU	450 w 300 w

Display
DisplayPort	1 1.4a
HDMI	1 2.1
HDCP	2.3
DVI-D DL	1

Dimensions
Slots	2
Length	222 mm
Height	120 mm

Models

GPU▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Asus Dual GeForce RTX 3050 OC Edition DUAL-RTX3050-O6G	1537 MHz +4.6%	1.9	201 mm	120 mm	37 mm
Gigabyte GeForce RTX 3050 WINDFORCE OC GV-N3050WF2OC-6GD	1477 MHz +0.5%	1.8	191 mm	111 mm	36 mm
Inno3D GEFORCE RTX 3050 TWIN X2 V2 N30502-06D6-1880VA60	1470 MHz	2	222 mm	120 mm	40 mm
MSI GeForce RTX 3050 LP OC	1492 MHz +1.5%	2.1	174 mm	69 mm	42 mm
Gigabyte GeForce RTX 3050 WINDFORCE OC V2 GV-N3050WF2OCV2-6GD	1477 MHz +0.5%	1.8	191 mm	111 mm	36 mm
Zotac GeForce RTX 3050 TWIN EDGE OC ZT-A30510H-10L	1477 MHz +0.5%	2	161.9 mm	111.2 mm	40.2 mm
MSI GeForce RTX 3050 VENTUS 2X OC	1492 MHz +1.5%	2.1	189 mm	109 mm	42 mm
Asus GeForce RTX 3050 LP BRK OC Edition RTX3050-O6G-LP-BRK	1537 MHz +4.6%	2	182 mm	69 mm	40 mm
Zotac GeForce RTX 3050 Solo ZT-A30510G-10L	1470 MHz	2	150.8 mm	115.1 mm	39.2 mm
Inno3D GEFORCE RTX 3050 TWIN X2 N30502-08D6-1711VA41	1777 MHz +20.9%	2	222 mm	120 mm
