| Information | |
|---|---|
| Platform | Consumer |
| Architecture | Turing |
| Generation | GeForce RTX 20 |
| Previous Gen | GeForce 10 |
| Next generation | GeForce RTX 30 |
| Interface | PCIe 3.0 x16 |
| Max temperature | 89 C |
| Core | |
|---|---|
| Name | TU102 |
| Foundry | TSMC |
| Process Node | 12 nm |
| Transistors | 18600 million |
| Die Size | 754.0 mm² |
| Density | 24.7 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 4352 |
| TMUs | 272 |
| ROPs | 88 |
| SMs | 68 |
| Tensor Cores | 544 |
| RT Cores | 68 |
| Memory | |
|---|---|
| Technology | GDDR6 |
| Size | 11 GB |
| Bus | 352 bit |
| Bandwidth | 616.0 GB/s |
| Speed | 14.0 Gbps |
| Clocks | |
|---|---|
| Base clock | 1350 MHz |
| Boost clock | 1755 MHz 1635 MHz |
| Memory clock | 1750 MHz |
| Power | |
|---|---|
| 6-pin | 1 |
| 8-pin | 2 |
| TDP | 300 w 250 w |
| Recommended PSU | 650 w |
| Display | |
|---|---|

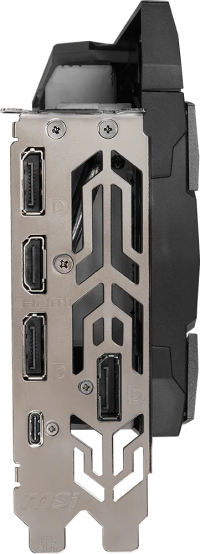

| DisplayPort | 3 1.4a |
| HDMI | 1 2.0b |
| USB Type-C | 1 |
| Resolution | 7680 x 4320 |
| Monitors | 4 |
| Dimensions | |
|---|---|
| Slots | 2.9 2 |
| Length | 328 mm 267 mm |
| Height | 140 mm 116 mm |
| Width | 57 mm 40 mm |
| Weight | 1545 g 1270 g |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1635 MHz | ||||||
| 1800 MHz +10.1% | 3 | 310 mm | 135 mm | 60 mm | ||
| 1545 MHz -5.5% | 2 | 267 mm | 116 mm | 40 mm | ||
| 1635 MHz | 2 | 267 mm | 116 mm | 35 mm | ||
| 1770 MHz +8.3% | 3.2 | 328 mm | 143 mm | 63 mm | ||
| 1575 MHz -3.7% | 3.2 | 328 mm | 143 mm | 63 mm | ||
| 1755 MHz +7.3% | 2.9 | 328 mm | 140 mm | 57 mm | ||
| 1635 MHz | 2.5 | 268 mm | 112 mm | 50 mm |
