MSI GeForce GT 710 2GD3H - Prices, specifications and information

MSI GeForce GT 710 2GD3H

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > NVIDIA GT 710 2GB > MSI GeForce GT 710 2GD3H

MSI GeForce GT 710 2GD3H
GT 710 2GD3H LP

Information
PlatformConsumer
ArchitectureKepler 2.0
GenerationGeForce 700
Previous GenGeForce 600
Next generationGeForce 900
InterfacePCIe 2.0 x8
Core
NameGK208B
FoundryTSMC
Process Node28 nm
Transistors1020 million
Die Size87.0 mm²
Density11.7 /mm²
GPU Core Config
Cores192
TMUs16
ROPs8
Memory
Technology11 GDDR5
Size64 GB 2 GB
Bus64 bit
Bandwidth40.1 GB/s
Speed5.0 Gbps

Information
Platform	Consumer
Architecture	Kepler 2.0
Generation	GeForce 700
Previous Gen	GeForce 600
Next generation	GeForce 900
Interface	PCIe 2.0 x8

Core
Name	GK208B
Foundry	TSMC
Process Node	28 nm
Transistors	1020 million
Die Size	87.0 mm²
Density	11.7 /mm²

GPU Core Config
Cores	192
TMUs	16
ROPs	8

Memory
Technology	11 GDDR5
Size	64 GB 2 GB
Bus	64 bit
Bandwidth	40.1 GB/s
Speed	5.0 Gbps

Clocks
Base clock954 MHz
Boost clock954 MHz
Memory clock1253 MHz
Power
TDP19 w
Recommended PSU300 w

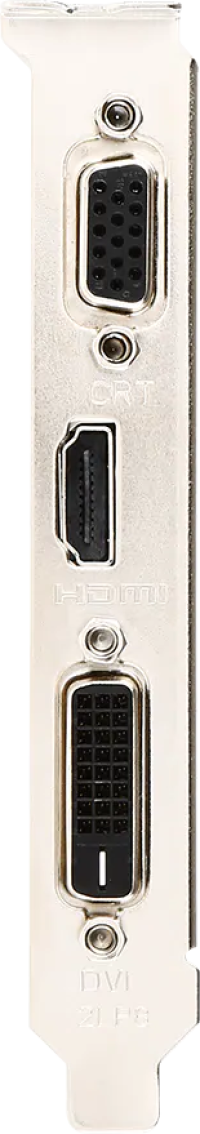

Display
HDMI1 1.4
HDCP1.4
DVI-D DL1
VGA1
Resolution3840 x 2160
Dimensions
Slots1 2
Length146 mm 170 mm
Height69 mm
Width19 mm 39 mm
Weight178 g

Clocks
Base clock	954 MHz
Boost clock	954 MHz
Memory clock	1253 MHz

Power
TDP	19 w
Recommended PSU	300 w

Display
HDMI	1 1.4
HDCP	1.4
DVI-D DL	1
VGA	1
Resolution	3840 x 2160

Dimensions
Slots	1 2
Length	146 mm 170 mm
Height	69 mm
Width	19 mm 39 mm
Weight	178 g

Models

GPU▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Asus GeForce GT 710 2GB EVO GT710-SL-2GD5-BRK-EVO	954 MHz	2	170 mm	69 mm	39 mm
Zotac GeForce GT 710 ZT-71310-10L	954 MHz	1	157 mm	111.1 mm	16 mm
MSI GeForce GT 710 2GD3H GT 710 2GD3H LP	954 MHz	1	146 mm	69 mm	19 mm
