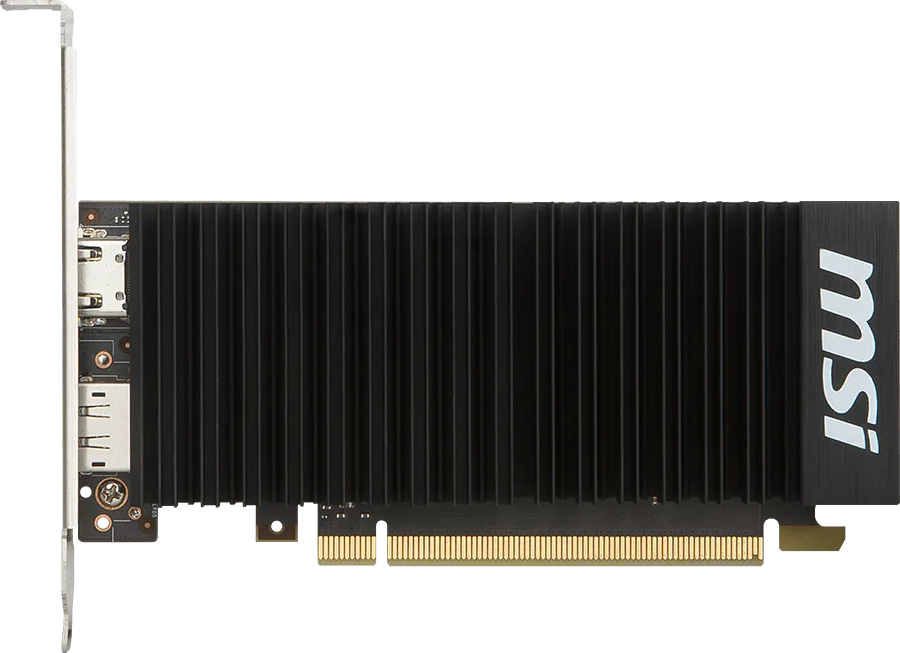

MSI GeForce GT 1030 2GH LP OC

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > NVIDIA GT 1030 > MSI GeForce GT 1030 2GH LP OC

MSI GeForce GT 1030 2GH LP OC

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next generationGeForce RTX 20
Interface PCIe 3.0 x4
Core
NameGP108
FoundrySamsung
Process Node14 nm
Transistors1800 million
Die Size74.0 mm²
Density24.3 /mm²
GPU Core Config
Cores384
TMUs24
ROPs16
Memory
TechnologyGDDR5
Size2 GB
Bus64 bit
Bandwidth48.1 GB/s
Speed6.0 Gbps

Information
Platform	Consumer
Architecture	Pascal
Generation	GeForce 10
Previous Gen	GeForce 900
Next generation	GeForce RTX 20
Interface	PCIe 3.0 x4

Core
Name	GP108
Foundry	Samsung
Process Node	14 nm
Transistors	1800 million
Die Size	74.0 mm²
Density	24.3 /mm²

GPU Core Config
Cores	384
TMUs	24
ROPs	16

Memory
Technology	GDDR5
Size	2 GB
Bus	64 bit
Bandwidth	48.1 GB/s
Speed	6.0 Gbps

Clocks
Base clock1228 MHz
Boost clock1518 MHz 1468 MHz
Memory clock1502 MHz
Power
TDP30 w
Recommended PSU300 w 200 w

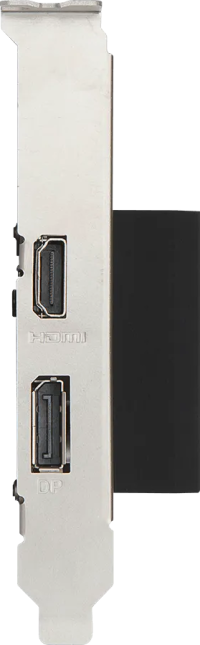

Display
DisplayPort1 1.4a
HDMI1 2.0b
HDCP2.2
Dimensions
Slots1.9 1
Length153 mm
Height69 mm
Width38 mm
Weight302 g

Clocks
Base clock	1228 MHz
Boost clock	1518 MHz 1468 MHz
Memory clock	1502 MHz

Power
TDP	30 w
Recommended PSU	300 w 200 w

Display
DisplayPort	1 1.4a
HDMI	1 2.0b
HDCP	2.2

Dimensions
Slots	1.9 1
Length	153 mm
Height	69 mm
Width	38 mm
Weight	302 g

Models

GPU▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Asus GeForce GT 1030 Silent GT1030-SL-2G-BRK	1506 MHz +2.6%	2	173 mm	69 mm	40 mm
MSI GeForce GT 1030 4GHD4 LP OC	1430 MHz -2.6%	1.9	150 mm	69 mm	38 mm
Zotac GeForce GT 1030 ZT-P10300A-10L	1468 MHz	1	172.5 mm	111.2 mm	16 mm
Gigabyte GT 1030 Low Profile D4 GV-N1030D4-2GL	1468 MHz
MSI GeForce GT 1030 2GH LP OC	1518 MHz +3.4%	1.9	153 mm	69 mm	38 mm
Asus GeForce GT 1030 GT1030-2G-BRK	1468 MHz	1
