Sparkle Intel Arc B570 GUARDIAN Luna OC

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > Intel Arc B570 > Sparkle Intel Arc B570 GUARDIAN Luna OC

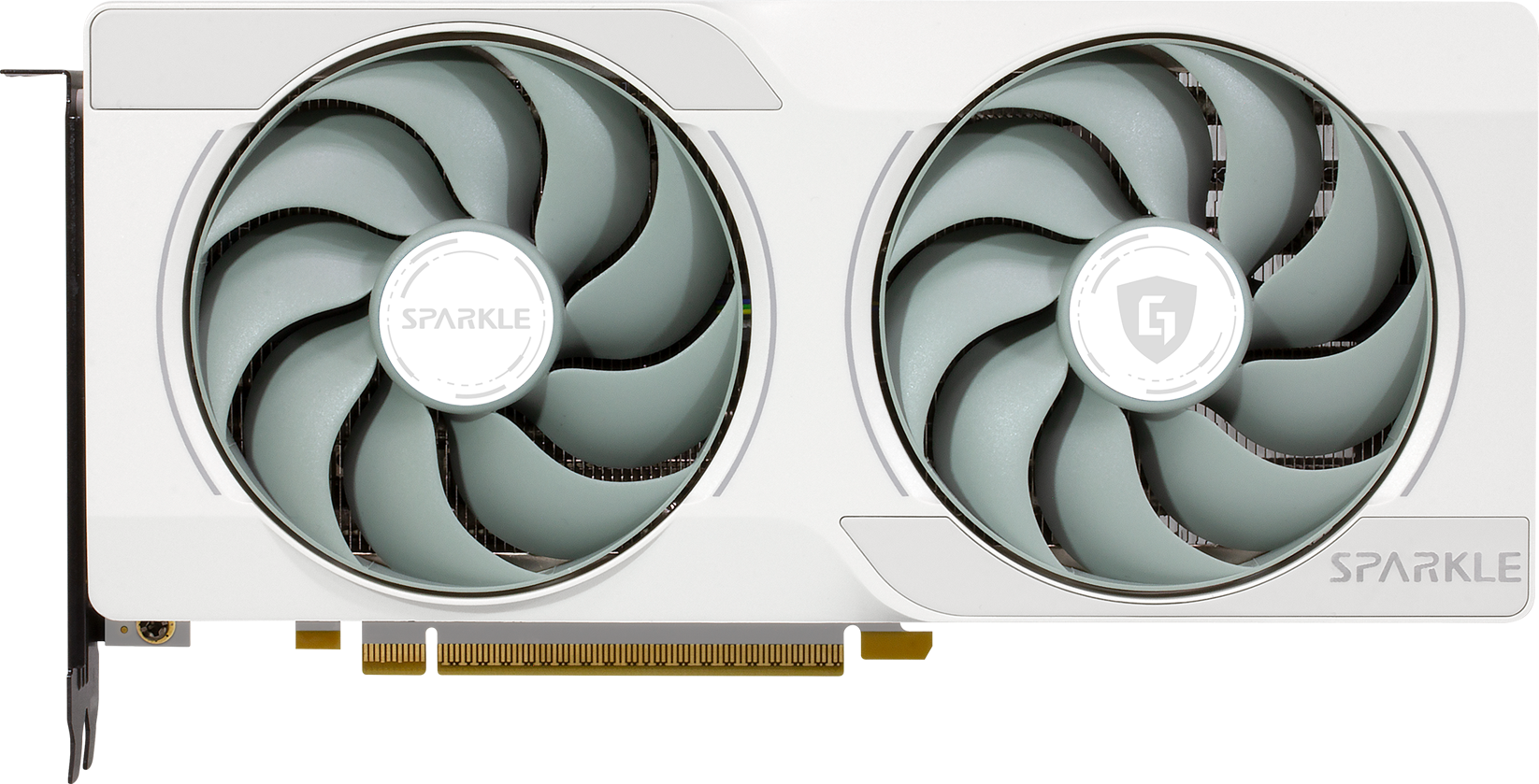

Sparkle Intel Arc B570 GUARDIAN Luna OC - Front

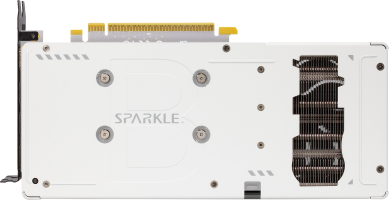

Sparkle Intel Arc B570 GUARDIAN Luna OC - Rear

Sparkle Intel Arc B570 GUARDIAN Luna OC - Side

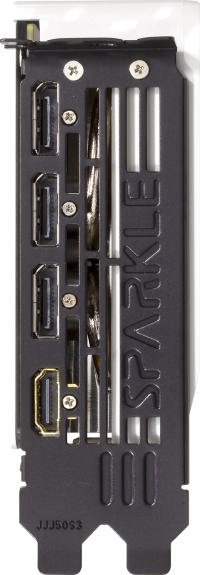

Sparkle Intel Arc B570 GUARDIAN Luna OC - Outputs

Sparkle Intel Arc B570 GUARDIAN Luna OC
SB570GW-10GOC

Memory
TechnologyGDDR6
Size10 GB
Bus160 bit
Bandwidth506.7 GB/s
Speed25.3 Gbps
Clocks
Base clock2500 MHz
Boost clock2660 MHz 2750 MHz
Memory clock2375 MHz
Power
8-pin1
TDP170 w 150 w
Recommended PSU600 w
Display
DisplayPort3 2.1
HDMI1 2.1

Memory
Technology	GDDR6
Size	10 GB
Bus	160 bit
Bandwidth	506.7 GB/s
Speed	25.3 Gbps

Clocks
Base clock	2500 MHz
Boost clock	2660 MHz 2750 MHz
Memory clock	2375 MHz

Power
8-pin	1
TDP	170 w 150 w
Recommended PSU	600 w

Display
DisplayPort	3 2.1
HDMI	1 2.1

Dimensions
Slots	2.2
Length	242 mm
Height	105 mm
Width	44 mm
Weight	796 g

Models

GPU▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Arc B570 Challenger OC B570 CL 10GO	2600 MHz -5.5%	2.1	249 mm	132 mm	41 mm
Sparkle Intel Arc B570 GUARDIAN OC SB570G-10GOC	2660 MHz -3.3%	2.2	242 mm	105 mm	44 mm
Sparkle Intel Arc B570 GUARDIAN Luna OC SB570GW-10GOC	2660 MHz -3.3%	2.2	242 mm	105 mm	44 mm
