ASRock Intel Arc A380 Challenger ITX OC

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > Intel Arc A380 > ASRock Intel Arc A380 Challenger ITX OC

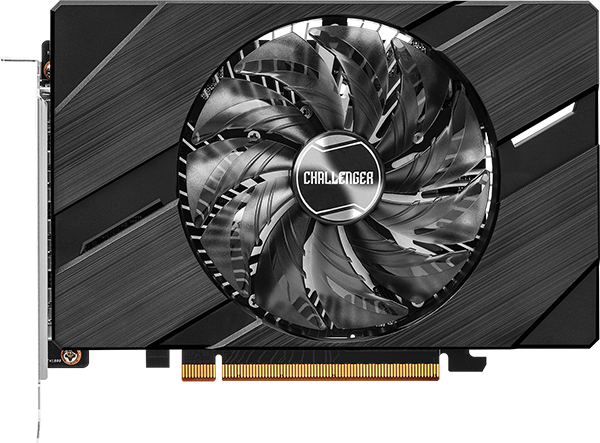

ASRock Intel Arc A380 Challenger ITX OC - Front

ASRock Intel Arc A380 Challenger ITX OC - Side

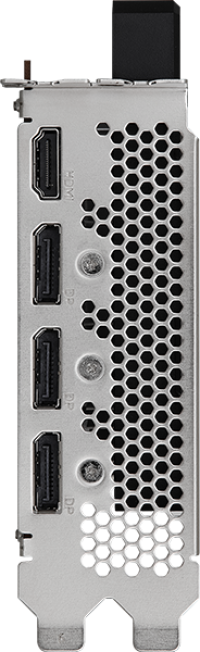

ASRock Intel Arc A380 Challenger ITX OC - Outputs

ASRock Intel Arc A380 Challenger ITX OC
A380 CLI 6GO

Information
PlatformConsumer
ArchitectureAlchemist
GenerationArc A
Next generationArc B
InterfacePCIe 4.0 x8
Core
NameDG2-128
FoundryTSMC
Process Node6 nm
Transistors7200 million
Die Size157.0 mm²
Density45.9 /mm²
GPU Core Config
Cores1024
TMUs64
ROPs32
Tensor Cores128
RT Cores8
Memory
TechnologyGDDR6
Size6 GB
Bus96 bit
Bandwidth46.5 GB/s
Speed3.9 Gbps

Information
Platform	Consumer
Architecture	Alchemist
Generation	Arc A
Next generation	Arc B
Interface	PCIe 4.0 x8

Core
Name	DG2-128
Foundry	TSMC
Process Node	6 nm
Transistors	7200 million
Die Size	157.0 mm²
Density	45.9 /mm²

GPU Core Config
Cores	1024
TMUs	64
ROPs	32
Tensor Cores	128
RT Cores	8

Memory
Technology	GDDR6
Size	6 GB
Bus	96 bit
Bandwidth	46.5 GB/s
Speed	3.9 Gbps

Clocks
Base clock2000 MHz
Boost clock2250 MHz 2050 MHz
Memory clock1937 MHz
Power
8-pin1
TDP75 w
Recommended PSU500 w 250 w
Display
DisplayPort3 2.0
HDMI1 2.0b
Dimensions
Slots2
Length190 mm
Height124 mm
Width39 mm
Weight400 g

Clocks
Base clock	2000 MHz
Boost clock	2250 MHz 2050 MHz
Memory clock	1937 MHz

Power
8-pin	1
TDP	75 w
Recommended PSU	500 w 250 w

Display
DisplayPort	3 2.0
HDMI	1 2.0b

Dimensions
Slots	2
Length	190 mm
Height	124 mm
Width	39 mm
Weight	400 g

Models

GPU▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Intel Arc A380 Challenger ITX OC A380 CLI 6GO		2250 MHz +9.8%	2	190 mm	124 mm	39 mm
Sparkle Intel Arc A380 ELF SA380E-6G		2000 MHz -2.4%	2	152.6 mm	100 mm	35.7 mm
