ASRock Intel Arc A310 Low Profile

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > Intel Arc A310 > ASRock Intel Arc A310 Low Profile

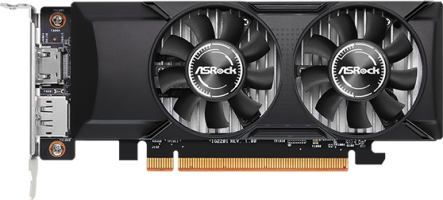

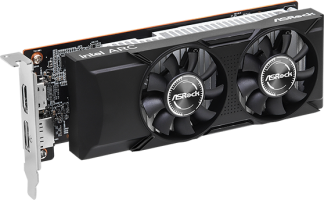

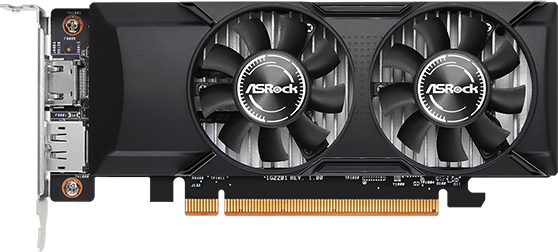

ASRock Intel Arc A310 Low Profile
A310 LP 4G

Information
PlatformConsumer
ArchitectureAlchemist
GenerationArc A
Next generationArc B
InterfacePCIe 4.0 x16
Core
NameDG2-128
FoundryTSMC
Process Node6 nm
Transistors7200 million
Die Size157.0 mm²
Density45.9 /mm²
GPU Core Config
Cores768
TMUs32
ROPs16
Memory
TechnologyGDDR6
Size4 GB
Bus64 bit
Bandwidth124.0 GB/s
Speed15.5 Gbps

Information
Platform	Consumer
Architecture	Alchemist
Generation	Arc A
Next generation	Arc B
Interface	PCIe 4.0 x16

Core
Name	DG2-128
Foundry	TSMC
Process Node	6 nm
Transistors	7200 million
Die Size	157.0 mm²
Density	45.9 /mm²

GPU Core Config
Cores	768
TMUs	32
ROPs	16

Memory
Technology	GDDR6
Size	4 GB
Bus	64 bit
Bandwidth	124.0 GB/s
Speed	15.5 Gbps

Clocks
Base clock1750 MHz
Boost clock2000 MHz 1750 MHz
Memory clock1937 MHz
Power
TDP30 w
Recommended PSU450 w 200 w

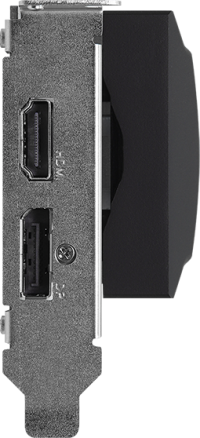

Display
DisplayPort1 2.0
HDMI1 2.0b
Dimensions
Slots2 1
Length169 mm
Height69 mm
Width39 mm
Weight263 g

Clocks
Base clock	1750 MHz
Boost clock	2000 MHz 1750 MHz
Memory clock	1937 MHz

Power
TDP	30 w
Recommended PSU	450 w 200 w

Display
DisplayPort	1 2.0
HDMI	1 2.0b

Dimensions
Slots	2 1
Length	169 mm
Height	69 mm
Width	39 mm
Weight	263 g

Models

GPU▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Sparkle Intel Arc A310 ECO SA310C-4G	1000 MHz -42.9%	1	156 mm	69 mm	15 mm
Sparkle Intel Arc A310 OMNI View SA310F-4G	1000 MHz -42.9%	1	145 mm	107 mm	18 mm
ASRock Intel Arc A310 Low Profile A310 LP 4G	2000 MHz +14.3%	2	169 mm	69 mm	39 mm
