| Name | Navi 48 |
| Foundry | TSMC |
| Process Node | 4 nm |
| Transistors | 53900 million |
| Die Size | 357.0 mm² |
| Density | 151.0 /mm² |
| Cores | 3072 |
| TMUs | 192 |
| ROPs | 96 |
| Technology | GDDR6 |
| Size | 12 GB |
| Bus | 192 bit |
| Bandwidth | 432.0 GB/s |
| Speed | 18.0 Gbps |
| Base clock | 1420 MHz |
| Game Clock | 2340 MHz 2220 MHz |
| Boost clock | 2920 MHz 2790 MHz |
| Memory clock | 2250 MHz |
| 8-pin | 2 |
| TDP | 220 w |
| Recommended PSU | 750 w 600 w |

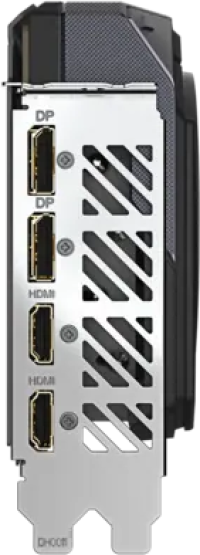

| DisplayPort | 2 2.1a |
| HDMI | 2 2.1b |
| Slots | 2.5 |
| Length | 288 mm |
| Height | 132 mm |
| Width | 50 mm |
| GPUs▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2880 MHz +3.2% | 2.5 | 312 mm | 130 mm | 50 mm | ||
 $603.64 | 2920 MHz +4.7% | 3.5 | 340 mm | 132 mm | 69 mm | |
| 2790 MHz | 2.1 | 289 mm | 111 mm | 41 mm | ||
| 2860 MHz +2.5% | 2.1 | 327 mm | 128 mm | 41 mm | ||
| $701.87 | 2790 MHz | 3 | 301 mm | 153 mm | 59 mm | |
| $699.99 | 2790 MHz | 3 | 301 mm | 153 mm | 59 mm | |
| $579.99 | 2880 MHz +3.2% | 2.5 | 304 mm | 126 mm | 50 mm | |
| $569.99 | 2920 MHz +4.7% | 2.5 | 288 mm | 132 mm | 50 mm | |
| $789.99 | 2880 MHz +3.2% | 2.5 | 305 mm | 126 mm | 50 mm | |
| 2920 MHz +4.7% | 2.9 | 298 mm | 131 mm | 58 mm | ||
| $633.99 | 2790 MHz | 3 | 301 mm | 153 mm | 59 mm | |
| $569.99 | 2920 MHz +4.7% | 2.6 | 280 mm | 120.3 mm | 51.5 mm |
