| Core | |
|---|---|
| Name | Navi 21 |
| Foundry | TSMC |
| Process Node | 7 nm |
| Transistors | 26800 million |
| Die Size | 520.0 mm² |
| Density | 51.5 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 5120 |
| TMUs | 320 |
| ROPs | 128 |
| RT Cores | 80 |
| Memory | |
|---|---|
| Technology | GDDR6 |
| Size | 16 GB |
| Bus | 256 bit |
| Infinity Cache | 128 MB |
| Bandwidth | 1,152.0 GB/s |
| Speed | 36.0 Gbps |
| Clocks | |
|---|---|
| Base clock | 1958 MHz 1860 MHz |
| Game Clock | 2116 MHz 2100 MHz |
| Boost clock | 2324 MHz 2310 MHz |
| Memory clock | 2250 MHz |
| Power | |
|---|---|
| 8-pin | 3 |
| TDP | 335 w |
| Recommended PSU | 900 w 700 w |
| Display | |
|---|---|

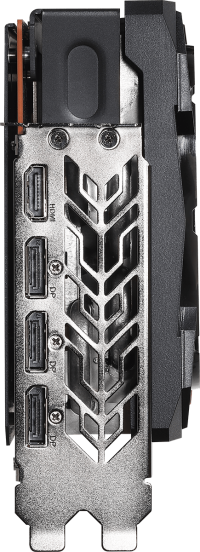

| DisplayPort | 3 1.4 |
| HDMI | 1 2.1 |
| Dimensions | |
|---|---|
| Slots | 2.8 3 |
| Length | 330 mm |
| Height | 140 mm |
| Width | 56 mm |
| Weight | 1784 g |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2324 MHz +0.6% | 2.8 | 330 mm | 140 mm | 56 mm |
