| Core | |
|---|---|
| Name | Navi 21 |
| Foundry | TSMC |
| Process Node | 7 nm |
| Transistors | 26800 million |
| Die Size | 520.0 mm² |
| Density | 51.5 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 5120 |
| TMUs | 320 |
| ROPs | 128 |
| RT Cores | 80 |
| Memory | |
|---|---|
| Technology | GDDR6 |
| Size | 16 GB |
| Bus | 256 bit |
| Infinity Cache | 128 MB |
| Bandwidth | 512.0 GB/s |
| Speed | 16.0 Gbps |
| Clocks | |
|---|---|
| Base clock | 1825 MHz |
| Game Clock | 2105 MHz |
| Boost clock | 2340 MHz 2250 MHz |
| Memory clock | 2000 MHz |
| Power | |
|---|---|
| 8-pin | 2 |
| TDP | 300 w |
| Recommended PSU | 850 w 700 w |

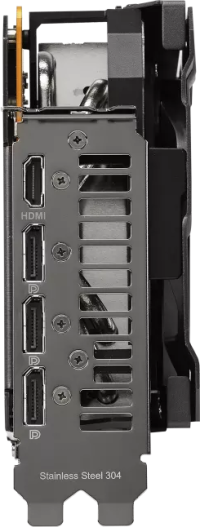

| Display | |
|---|---|
| DisplayPort | 3 1.4a |
| HDMI | 1 2.1 |
| HDCP | 2.3 |
| USB Type-C | 1 |
| Dimensions | |
|---|---|
| Slots | 2.9 3 |
| Length | 320 mm |
| Height | 140 mm |
| Width | 57.8 mm |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2340 MHz +4.0% | 2.9 | 320 mm | 140 mm | 57.8 mm | ||
| 2425 MHz +7.8% | 3.1 | 320 mm | 135 mm | 62 mm | ||
| 2250 MHz | 2.5 | 267 mm | 120 mm | 50 mm |
