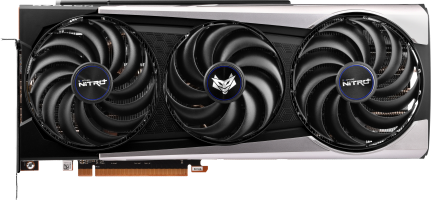

Name: Sapphire NITRO+ Radeon RX 6800
Brand: Sapphire
SKU: 11305-01-20G

GPUs

AMD RX 6800

Sapphire NITRO+ Radeon RX 6800

AMD RX 6800
Sapphire NITRO+ Radeon RX 6800
11305-01-20G
Specifications
Models
No reviews yet. Be the first to share your thoughts!
 Log in to write a review.

Specifications

Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next generationRX 7000
InterfacePCIe 4.0 x16
Core
NameNavi 21
FoundryTSMC
Process Node7 nm
Transistors26800 million
Die Size520.0 mm²
Density51.5 /mm²
GPU Core Config
Cores3840
TMUs240
ROPs96
RT Cores60
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Infinity Cache128 MB
Bandwidth512.0 GB/s
Speed16.0 Gbps

Clocks
Base clock1700 MHz
Game Clock1980 MHz 1815 MHz
Boost clock2190 MHz 2105 MHz
Memory clock2000 MHz
Power
8-pin2
TDP290 w 250 w
Recommended PSU750 w 600 w
Display
DisplayPort3
HDMI1
USB Type-C1
Dimensions
Slots2.8 2
Length310.5 mm
Height134.2 mm
Width55.2 mm

Models

GPUs▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Radeon RX 6800 Phantom Gaming D OC RX6800 PGD 16GO		2190 MHz +4.0%	2.8	305 mm	131 mm	55 mm
Sapphire NITRO+ Radeon RX 6800 11305-01-20G		2190 MHz +4.0%	2.8	310.5 mm	134.2 mm	55.2 mm

Platform	Consumer
Architecture	RDNA2
Generation	RX 6000
Previous Gen	RX 5000
Next generation	RX 7000
Interface	PCIe 4.0 x16

Name	Navi 21
Foundry	TSMC
Process Node	7 nm
Transistors	26800 million
Die Size	520.0 mm²
Density	51.5 /mm²

Technology	GDDR6
Size	16 GB
Bus	256 bit
Infinity Cache	128 MB
Bandwidth	512.0 GB/s
Speed	16.0 Gbps

Base clock	1700 MHz
Game Clock	1980 MHz 1815 MHz
Boost clock	2190 MHz 2105 MHz
Memory clock	2000 MHz

Cores	3840
TMUs	240
ROPs	96
RT Cores	60

8-pin	2
TDP	290 w 250 w
Recommended PSU	750 w 600 w

DisplayPort	3
HDMI	1
USB Type-C	1

Slots	2.8 2
Length	310.5 mm
Height	134.2 mm
Width	55.2 mm
