Name: Asus ROG Strix Radeon RX 6600 XT OC Edition
Brand: Asus
SKU: ROG-STRIX-RX6600XT-O8G-GAMING
Availability: OutOfStock

GPUs

AMD RX 6600 XT

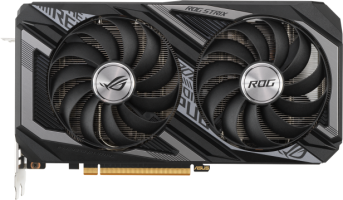

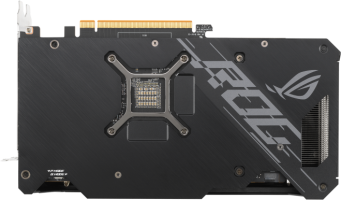

Asus ROG Strix Radeon RX 6600 XT OC Edition

Asus ROG Strix Radeon RX 6600 XT OC Edition - Side

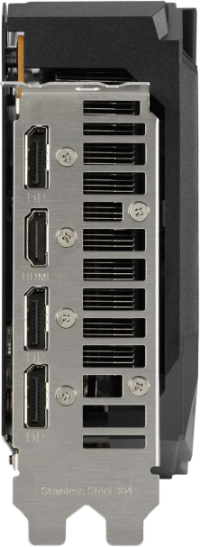

Asus ROG Strix Radeon RX 6600 XT OC Edition - Outputs

AMD RX 6600 XT
Asus ROG Strix Radeon RX 6600 XT OC Edition
ROG-STRIX-RX6600XT-O8G-GAMING
Historical prices
Specifications
Models
$484.00
No reviews yet. Be the first to share your thoughts!
 Log in to write a review.

Historical prices

Specifications

Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next generationRX 7000
InterfacePCIe 4.0 x8
Core
NameNavi 23
FoundryTSMC
Process Node7 nm
Transistors11060 million
Die Size237.0 mm²
Density46.7 /mm²
GPU Core Config
Cores2048
TMUs128
ROPs64
RT Cores32
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Infinity Cache32 MB
Bandwidth256.0 GB/s
Speed16.0 Gbps

Clocks
Base clock1968 MHz
Game Clock2448 MHz 2359 MHz
Boost clock2607 MHz 2589 MHz
Memory clock2000 MHz
Power
8-pin1
TDP160 w
Recommended PSU500 w 450 w
Display
DisplayPort3 1.4a
HDMI1 2.1
HDCP2.3
Dimensions
Slots2.6 2
Length243 mm
Height134 mm
Width52 mm

Models

GPUs▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Strix Radeon RX 6600 XT OC Edition ROG-STRIX-RX6600XT-O8G-GAMING	$484.00	2607 MHz +0.7%	2.6	243 mm	134 mm	52 mm

Platform	Consumer
Architecture	RDNA2
Generation	RX 6000
Previous Gen	RX 5000
Next generation	RX 7000
Interface	PCIe 4.0 x8

Name	Navi 23
Foundry	TSMC
Process Node	7 nm
Transistors	11060 million
Die Size	237.0 mm²
Density	46.7 /mm²

Technology	GDDR6
Size	8 GB
Bus	128 bit
Infinity Cache	32 MB
Bandwidth	256.0 GB/s
Speed	16.0 Gbps

Base clock	1968 MHz
Game Clock	2448 MHz 2359 MHz
Boost clock	2607 MHz 2589 MHz
Memory clock	2000 MHz

Cores	2048
TMUs	128
ROPs	64
RT Cores	32

8-pin	1
TDP	160 w
Recommended PSU	500 w 450 w

DisplayPort	3 1.4a
HDMI	1 2.1
HDCP	2.3

Slots	2.6 2
Length	243 mm
Height	134 mm
Width	52 mm
