ASRock Radeon RX 6600 Challenger D

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > AMD RX 6600 > ASRock Radeon RX 6600 Challenger D

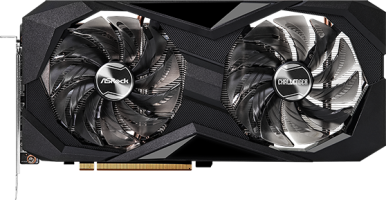

ASRock Radeon RX 6600 Challenger D - Front

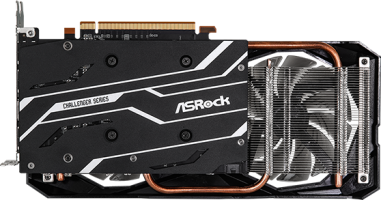

ASRock Radeon RX 6600 Challenger D - Rear

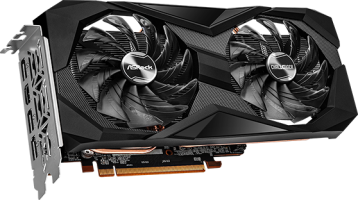

ASRock Radeon RX 6600 Challenger D - Side

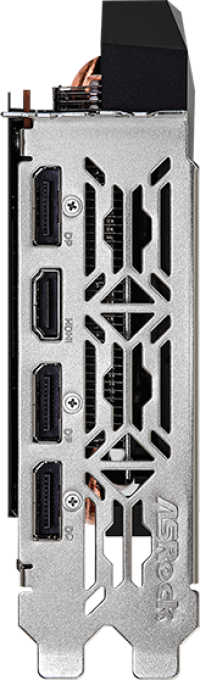

ASRock Radeon RX 6600 Challenger D - Outputs

ASRock Radeon RX 6600 Challenger D
RX6600 CLD 8G

Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next generationRX 7000
InterfacePCIe 4.0 x8
Core
NameNavi 23
FoundryTSMC
Process Node7 nm
Transistors11060 million
Die Size237.0 mm²
Density46.7 /mm²
GPU Core Config
Cores1792
TMUs112
ROPs64
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Infinity Cache32 MB
Bandwidth224.0 GB/s
Speed14.0 Gbps

Information
Platform	Consumer
Architecture	RDNA2
Generation	RX 6000
Previous Gen	RX 5000
Next generation	RX 7000
Interface	PCIe 4.0 x8

Core
Name	Navi 23
Foundry	TSMC
Process Node	7 nm
Transistors	11060 million
Die Size	237.0 mm²
Density	46.7 /mm²

GPU Core Config
Cores	1792
TMUs	112
ROPs	64

Memory
Technology	GDDR6
Size	8 GB
Bus	128 bit
Infinity Cache	32 MB
Bandwidth	224.0 GB/s
Speed	14.0 Gbps

Clocks
Base clock1626 MHz
Game Clock2044 MHz
Boost clock2491 MHz
Memory clock1750 MHz
Power
8-pin1
TDP132 w
Recommended PSU500 w 300 w
Display
DisplayPort3
HDMI1
Dimensions
Slots2.1 2
Length269 mm
Height132 mm
Width41 mm
Weight627 g

Clocks
Base clock	1626 MHz
Game Clock	2044 MHz
Boost clock	2491 MHz
Memory clock	1750 MHz

Power
8-pin	1
TDP	132 w
Recommended PSU	500 w 300 w

Display
DisplayPort	3
HDMI	1

Dimensions
Slots	2.1 2
Length	269 mm
Height	132 mm
Width	41 mm
Weight	627 g

Models

GPU▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Radeon RX 6600 Challenger D RX6600 CLD 8G		2491 MHz	2.1	269 mm	132 mm	41 mm
PowerColor Fighter AMD Radeon RX 6600 AXRX 6600 8GBD6-3DH		2491 MHz	2	200 mm	111 mm	39 mm
