XFX SPEEDSTER SWFT105 RADEON RX 6400

Prices, specifications and information

GPU

Featuring 240+ GPU-models — And growing.

GPUs > AMD RX 6400 > XFX SPEEDSTER SWFT105 RADEON RX 6400

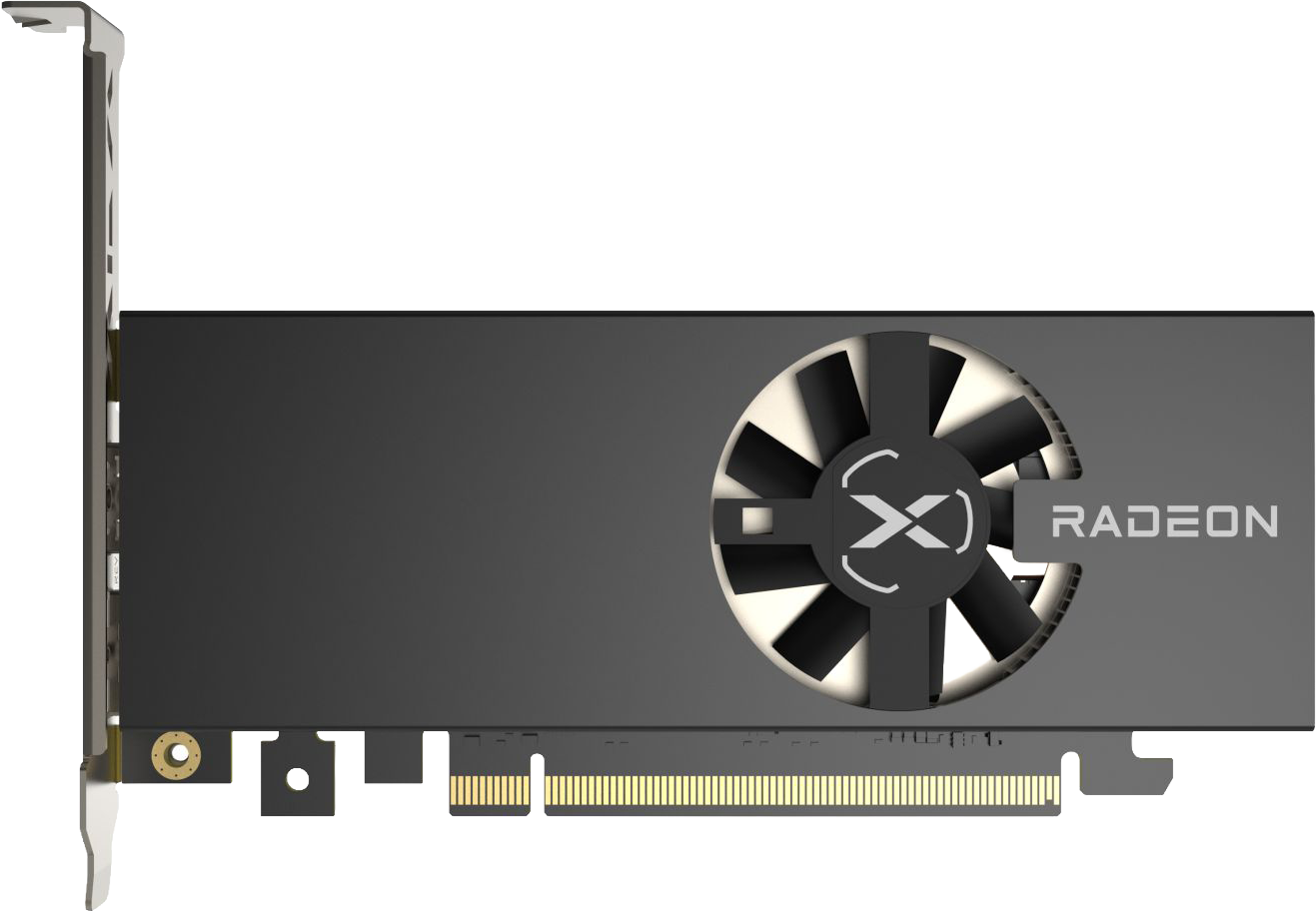

XFX SPEEDSTER SWFT105 RADEON RX 6400 - Front

XFX SPEEDSTER SWFT105 RADEON RX 6400
RX-64XL4SFG2

Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next generationRX 7000
InterfacePCIe 4.0 x4
Core
NameNavi 24
FoundryTSMC
Process Node6 nm
Transistors5400 million
Die Size107.0 mm²
Density50.5 /mm²
GPU Core Config
Cores768
TMUs48
ROPs32
RT Cores12
Memory
TechnologyGDDR6
Size4 GB
Bus64 bit
Infinity Cache16 MB
Bandwidth128.0 GB/s
Speed16.0 Gbps

Information
Platform	Consumer
Architecture	RDNA2
Generation	RX 6000
Previous Gen	RX 5000
Next generation	RX 7000
Interface	PCIe 4.0 x4

Core
Name	Navi 24
Foundry	TSMC
Process Node	6 nm
Transistors	5400 million
Die Size	107.0 mm²
Density	50.5 /mm²

GPU Core Config
Cores	768
TMUs	48
ROPs	32
RT Cores	12

Memory
Technology	GDDR6
Size	4 GB
Bus	64 bit
Infinity Cache	16 MB
Bandwidth	128.0 GB/s
Speed	16.0 Gbps

Clocks
Base clock1923 MHz
Game Clock2039 MHz
Boost clock2321 MHz
Memory clock2000 MHz
Power
TDP53 w
Recommended PSU400 w 250 w
Display
DisplayPort1 1.4
HDMI1 2.1
Dimensions
Slots1
Length155 mm
Height68 mm
Width15 mm

Clocks
Base clock	1923 MHz
Game Clock	2039 MHz
Boost clock	2321 MHz
Memory clock	2000 MHz

Power
TDP	53 w
Recommended PSU	400 w 250 w

Display
DisplayPort	1 1.4
HDMI	1 2.1

Dimensions
Slots	1
Length	155 mm
Height	68 mm
Width	15 mm

Models

GPU▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
XFX SPEEDSTER SWFT105 RADEON RX 6400 RX-64XL4SFG2		2321 MHz	1	155 mm	68 mm	15 mm
