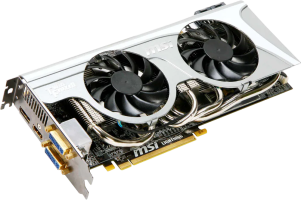

Name: MSI HD 5870 Lightning
Brand: MSI
SKU: R5870 LIGHTNING

GPUs

AMD Radeon HD 5870

MSI HD 5870 Lightning

AMD Radeon HD 5870
MSI HD 5870 Lightning
R5870 LIGHTNING
Specifications
Models
No reviews yet. Be the first to share your thoughts!
 Log in to write a review.

Specifications

Information
PlatformConsumer
InterfacePCIe 2.0 x16
GPU Core Config
Cores1600
TMUs80
Compute Units20
ROPs32
Memory
TechnologyGDDR5
Size1 GB
Bus256 bit
Bandwidth153.6 GB/s
Speed4.8 Gbps
Clocks
Base clock900 MHz 850 MHz
Memory clock1200 MHz

Power
6-pin2
TDP188 w
Recommended PSU450 w
Display
DisplayPort1 1
DVI2
Dimensions
Slots2
Length277 mm 280 mm
Height126 mm 111 mm
Width36 mm 37 mm

Models

GPUs▲	Base clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Matrix HD 5870 Platinum MATRIX 5870 P/2DIS/2GD5	894 MHz +5.2%	2	273 mm	120 mm	40 mm
MSI HD 5870 Lightning R5870 LIGHTNING	900 MHz +5.9%	2	277 mm	126 mm	36 mm
Asus ROG Ares ARES/2DIS/4GD5	850 MHz
MSI HD 5870 Lightning II R5870 LIGHTNING II	850 MHz
Sapphire Sapphire HD 5870 Vapor-X 100281-2GVXSR	850 MHz	2	267 mm

Technology	GDDR5
Size	1 GB
Bus	256 bit
Bandwidth	153.6 GB/s
Speed	4.8 Gbps

Slots	2
Length	277 mm 280 mm
Height	126 mm 111 mm
Width	36 mm 37 mm

Platform	Consumer
Interface	PCIe 2.0 x16

Cores	1600
TMUs	80
Compute Units	20
ROPs	32

6-pin	2
TDP	188 w
Recommended PSU	450 w

DisplayPort	1 1
DVI	2
