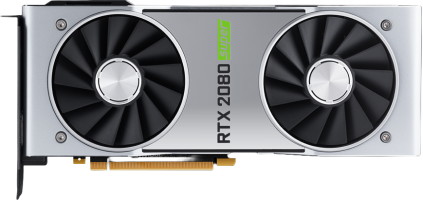

NVIDIA RTX 2080 Super

RTX 2080 Super is a consumer-grade GPU from nvidia\'s GeForce RTX 20 series, built on the Turing architecture using the TU104 chip. Equipped with 8 GB of GDDR6 memory on a 256-bit bus, it delivers 495.9 GB/s of bandwidth at 15.5 Gbps.

Information
PlatformConsumer
ArchitectureTuring
GenerationGeForce RTX 20
Previous GenGeForce 10
Next generationGeForce RTX 30
InterfacePCIe 3.0 x16
Max temperature89 C
Core
NameTU104
FoundryTSMC
Process Node12 nm
Transistors13600 million
Die Size545.0 mm²
Density25.0 /mm²
GPU Core Config
Cores3072
TMUs192
ROPs64
Tensor Cores384
RT Cores48
Memory
TechnologyGDDR6
Size8 GB
Bus256 bit
Bandwidth495.9 GB/s
Speed15.5 Gbps

Information
Platform	Consumer
Architecture	Turing
Generation	GeForce RTX 20
Previous Gen	GeForce 10
Next generation	GeForce RTX 30
Interface	PCIe 3.0 x16
Max temperature	89 C

Core
Name	TU104
Foundry	TSMC
Process Node	12 nm
Transistors	13600 million
Die Size	545.0 mm²
Density	25.0 /mm²

GPU Core Config
Cores	3072
TMUs	192
ROPs	64
Tensor Cores	384
RT Cores	48

Memory
Technology	GDDR6
Size	8 GB
Bus	256 bit
Bandwidth	495.9 GB/s
Speed	15.5 Gbps

Clocks
Base clock1650 MHz
Boost clock1815 MHz
Memory clock1937 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU650 w
Display
DisplayPort3 1.4a
HDMI1 2.0
USB Type-C1
Resolution7680 x 4320
Monitors4
Dimensions
Slots2
Width35 mm

Clocks
Base clock	1650 MHz
Boost clock	1815 MHz
Memory clock	1937 MHz

Power
6-pin	1
8-pin	1
TDP	250 w
Recommended PSU	650 w

Display
DisplayPort	3 1.4a
HDMI	1 2.0
USB Type-C	1
Resolution	7680 x 4320
Monitors	4

Dimensions
Slots	2
Width	35 mm

Models

GPU▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
MSI GeForce RTX 2080 SUPER GAMING X TRIO		1845 MHz +1.7%
NVIDIA RTX 2080 Super Founders Edition		1815 MHz	2			35 mm
