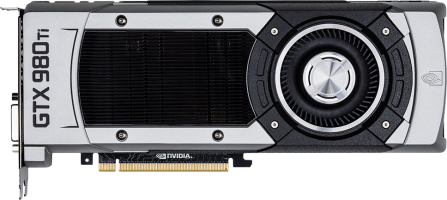

NVIDIA GTX 980 Ti

GTX 980 Ti is a consumer-grade GPU from NVIDIA\'s GeForce 900 series, built on the Maxwell 2.0 architecture using the GM200 chip. Equipped with 6 GB of GDDR5 memory on a 384-bit bus, it delivers 336.6 GB/s of bandwidth at 7.0 Gbps.

Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next generationGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM200
FoundryTSMC
Process Node28 nm
Transistors8000 million
Die Size601.0 mm²
Density13.3 /mm²
GPU Core Config
Cores2816
TMUs176
ROPs96
Memory
TechnologyGDDR5
Size6 GB
Bus384 bit
Bandwidth336.6 GB/s
Speed7.0 Gbps

Information
Platform	Consumer
Architecture	Maxwell 2.0
Generation	GeForce 900
Previous Gen	GeForce 700
Next generation	GeForce 10
Interface	PCIe 3.0 x16

Core
Name	GM200
Foundry	TSMC
Process Node	28 nm
Transistors	8000 million
Die Size	601.0 mm²
Density	13.3 /mm²

GPU Core Config
Cores	2816
TMUs	176
ROPs	96

Memory
Technology	GDDR5
Size	6 GB
Bus	384 bit
Bandwidth	336.6 GB/s
Speed	7.0 Gbps

Clocks
Base clock1000 MHz
Boost clock1076 MHz
Memory clock1753 MHz
Power
TDP250 w
Recommended PSU600 w

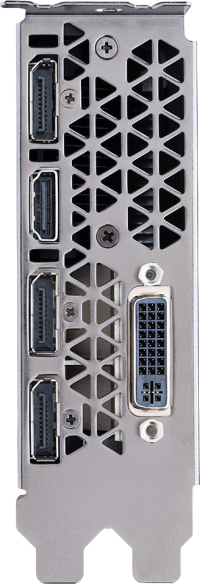

Display
DisplayPort3
HDMI1
DVI1
Dimensions
Slots2

Clocks
Base clock	1000 MHz
Boost clock	1076 MHz
Memory clock	1753 MHz

Power
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	3
HDMI	1
DVI	1

Dimensions
Slots	2

Models

GPU▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Asus GOLD20TH GTX 980 Ti Platinum GOLD20TH-GTX980TI-P-6G-GAMING	1367 MHz +27.0%
Asus ROG Matrix GTX 980 Ti MATRIX-GTX980TI-P-6GD5-GAMING	1291 MHz +20.0%	2
MSI GeForce GTX 980 Ti	1304 MHz +21.2%	2.7	330 mm	140 mm	53 mm
Colorful iGame GTX 980 Ti 20th Anniversary Edition	1291 MHz +20.0%	1.3	294 mm	153 mm	26 mm
